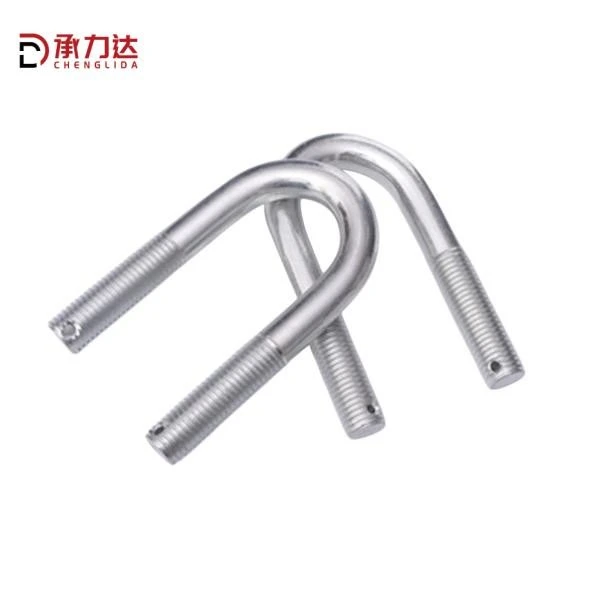

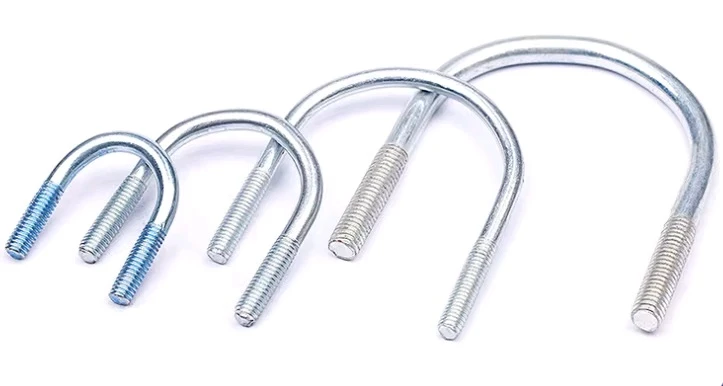

Solar Panel U-bolt

The Solar Panel U-bolt is a key component used for fixing and connecting solar panel brackets. It is made of high-strength steel with a hot-dip galvanized or zinc-aluminum-magnesium treated surface to enhance corrosion resistance. The U-bolt's design allows it to be firmly fixed to the bracket, and the solar panel is stably installed on the bracket using nuts and clamping plates.

Material: Q235B

Dimensions: Diameter, width, height, and thread length can be customized upon request.

Surface Treatment: Hot-dip galvanized or zinc-aluminum-magnesium treated.

Bolt Specifications: Commonly available are M8 and M10, with fixed spacing at both ends to ensure installation accuracy.

Easy Installation: Solar panel U-bolt clamps eliminate the need for drilling holes in purlins, reducing installation errors and time.

Flexible Adjustment: The angle of the solar panel can be fine-tuned by adjusting the nuts to ensure optimal sunlight exposure.

High Stability: The parallelism of the two ends of the U-bolt provides stable support and resistance to wind and vibration.

High Durability: Hot-dip galvanized or zinc-aluminum-magnesium treated surfaces maintain good performance even in harsh environments.

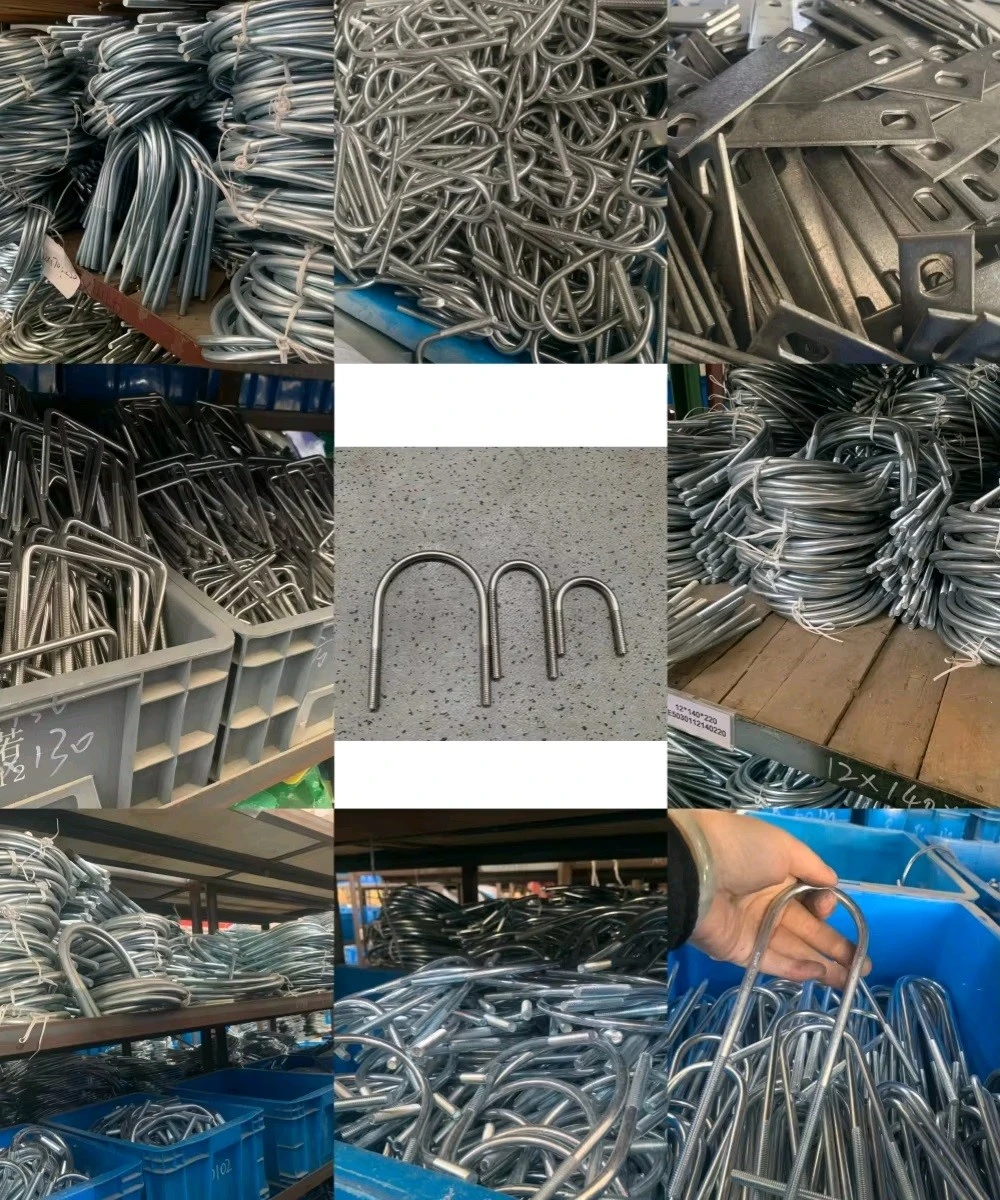

Ground-mounted power stations: Used to fix steel pipe columns to pre-embedded bolts or plates in a concrete foundation.
Rooftop power stations: Used in counterweight foundation systems to fix steel or aluminum support columns to concrete counterweight blocks.
Connecting circular members: Used to connect diagonal braces, tie rods, and other circular support components to the main beam or column.

 Location Determination: Determine the installation location of the U-bolts according to design requirements.

 Bolt Fixing: Secure the U-bolts to the bracket or base, ensuring both ends are parallel and accurately spaced.

 Plate the Plate: Place the plate on the solar panel, then pass the U-bolts through the screw holes in the plate.

 Tighten the Nuts: Tighten the U-bolts with nuts to ensure the solar panel is securely fixed to the bracket.

 Angle Adjustment: If necessary, fine-tune the angle of the solar panel by adjusting the nuts.
