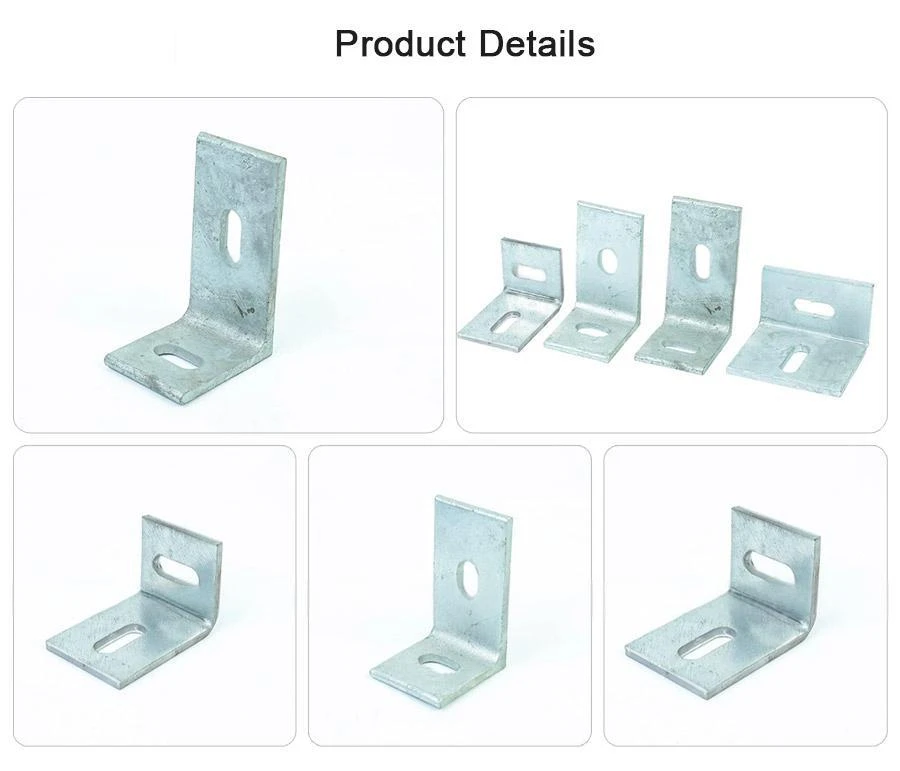

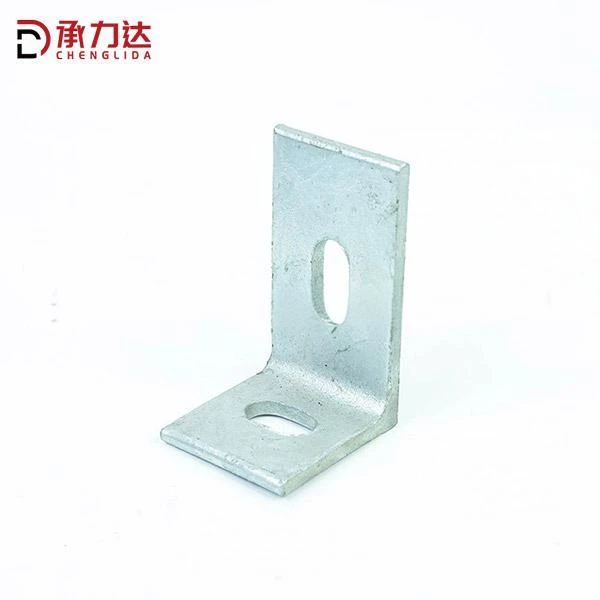

Solar Panel Mounting L Bracket

L-type solar connectors are bracket assemblies used to secure and connect solar panels, typically in rooftop or ground-mounted photovoltaic systems. Their main function is to provide stable support, ensuring the solar panels remain fixed in various weather conditions, and facilitating installation and maintenance. We offer standard solar panel mounting L-type brackets and non-standard L-type corner bracket gasket connectors with hot-dip galvanized treated surfaces.

Material: 6005T/6063 aluminum
Size: Standard sizes and custom sizes
Surface Treatment: Hot-dip galvanized
Connection Method: The L-shaped connector is fixed to the main support or roof structure with bolts and nuts.

• High Stability: The L-shaped design improves the overall structural stability, reducing the risk of solar panel movement or damage.
• Easy Installation: Simple structure, easy to install, suitable for residential and commercial solar panel installations.
• Good Durability: Made of durable and corrosion-resistant 6005T/6063 aluminum, with a lifespan exceeding 25 years.
• Cost-Efficient: As an affordable solution, the L-shaped connector reduces installation costs.

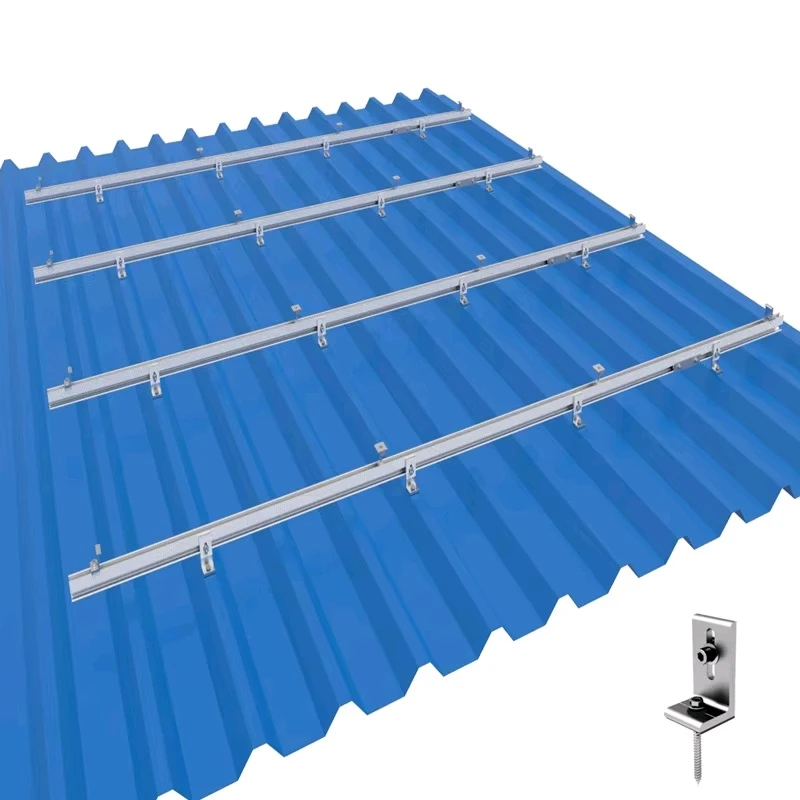

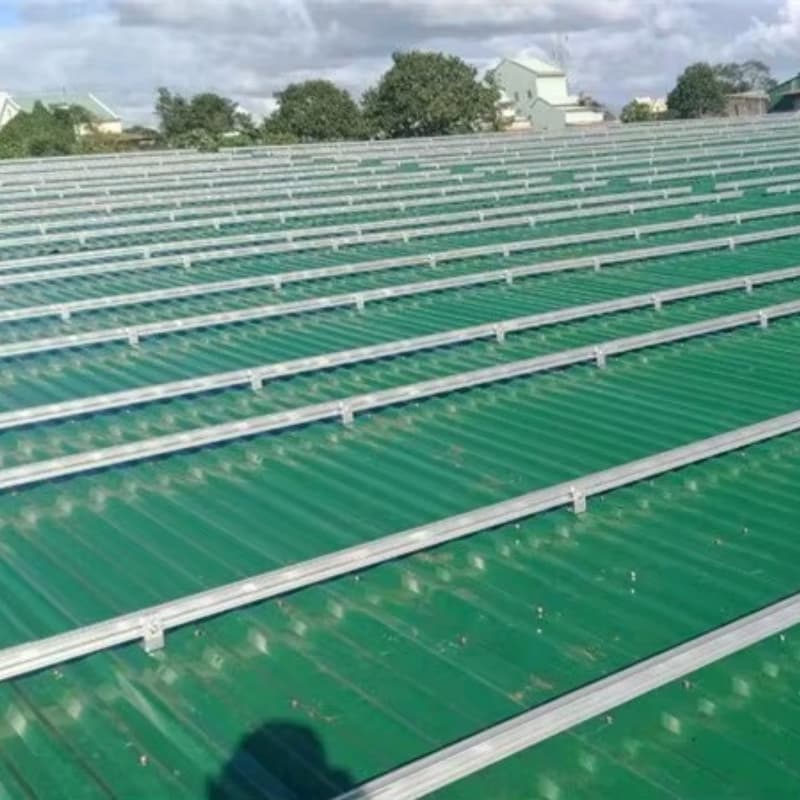

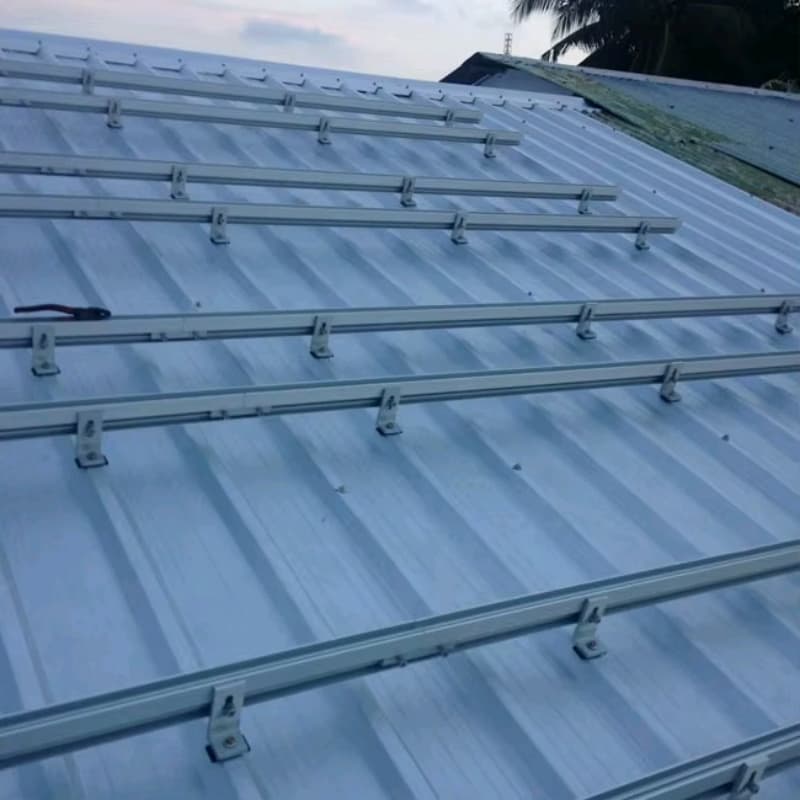

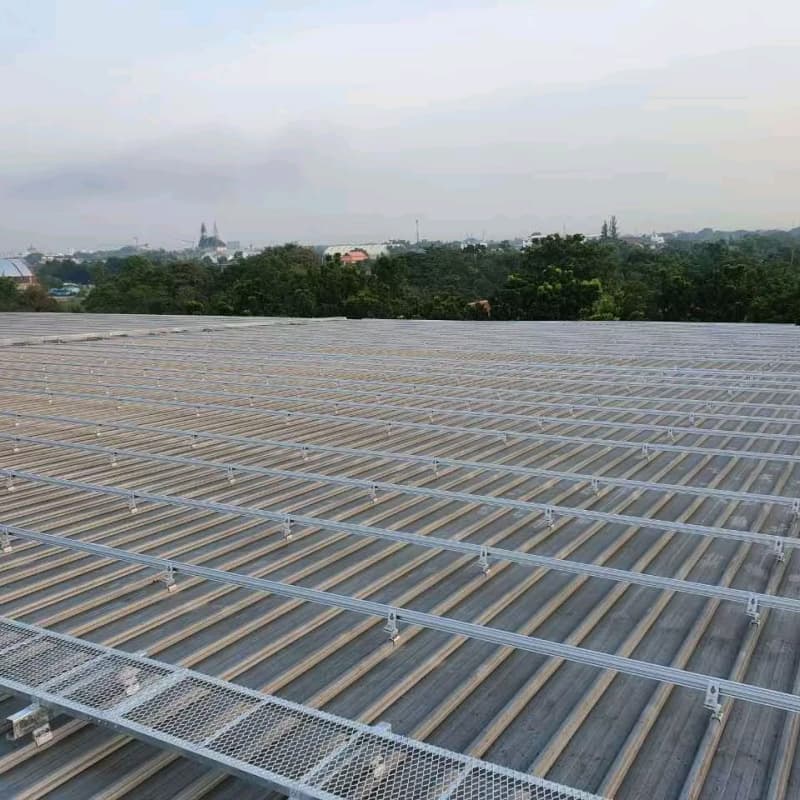

Roof Mounting: Suitable for all types of roofs, including metal and concrete roofs.

Ground Mounting: Can be used for ground-mounted photovoltaic systems, providing stable support.

Tilt Angle Adjustment: The L-connector design allows for adjustment of the tilt angle to optimize solar panel performance under sunlight.



 Location Selection: Choose a sunny and unobstructed location to install the L-connector.

 Surface Preparation: Ensure the mounting surface is clean and flat.

 Connecting the Connector: Secure the L-connector to the roof or ground using screws and bolts.

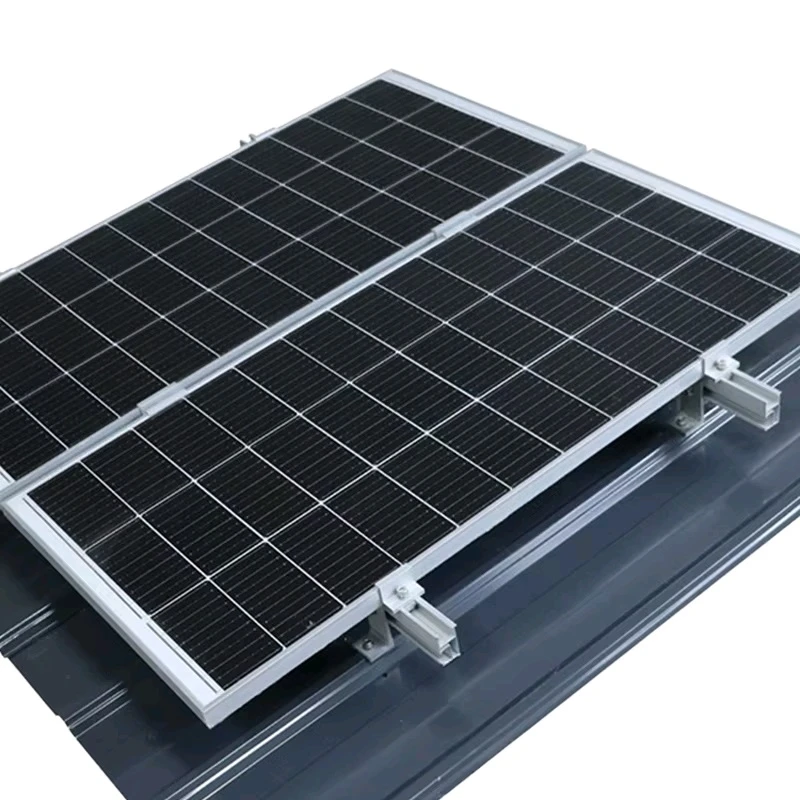

 Connecting the Solar Panels: Secure the solar panels to the L-connector using clips or other mounting hardware.

 Electrical Connection: Connect the solar panel wiring according to the manufacturer's instructions.
